型號 modle |
處理量 Capacity |
溶氣量 Dissolved gas |
功率表 KW Power |

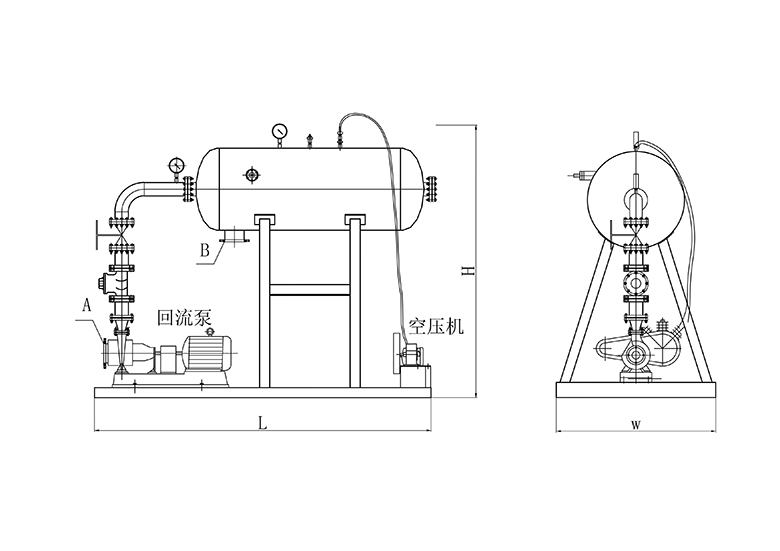

規(guī)格尺寸(m) Dimension |
管口表 DN (Nozzle list) | ||||
m³/h | m³/h |
回流泵 Reflux pump |
加氣機 Aerating machine | L | W | H |
進水口 iniet (A) |
出水口 Outlet (B) | |
WFA-2 | ~2 | ~0.7 | 0.55 | 0.55 | 1 | 0.45 | 0.8 | 25 | 25 |
WFA-3 | ~3 | ~2 | 0.75 | 0.55 | 1.3 | 0.6 | 1.3 | 32 | 32 |
WFA-5 | ~5 | ~3 | 1.1 | 0.55 | 1.3 | 0.6 | 1.3 | 32 | 32 |
WFA-10 | ~10 | ~4 | 1.5/5.5 | 0.75 | 1.6 | 0.6 | 1.5 | 40 | 40 |
WFA-15 | ~15 | ~5 | 2.2/5.5 | 0.75 | 1.8 | 0.6 | 1.5 | 40 | 40 |
WFA-20 | ~20 | ~7 | 3.0/5.5 | 0.75 | 1.8 | 0.6 | 1.5 | 40 | 40 |
WFA-30 | ~30 | ~12 | 3.0/5.5 | 0.75 | 2 | 0.7 | 1.7 | 50 | 50 |
WFA-40 | ~40 | ~15 | 4.0/5.5 | 1.5 | 2.3 | 0.8 | 1.8 | 65 | 65 |
WFA-50 | ~50 | ~20 | 7.5 | 1.5 | 2.3 | 0.8 | 1.8 | 80 | 80 |
WFA-60 | ~60 | ~25 | 7.5 | 1.5 | 2.3 | 0.9 | 1.9 | 80 | 80 |
WFA-70 | ~70 | ~30 | 11 | 1.5 | 2.3 | 0.9 | 1.9 | 80 | 80 |
WFA-80 | ~80 | ~30 | 11 | 2.2 | 2.7 | 1 | 2 | 80 | 80 |
WFA-100 | ~100 | ~40 | 11 | 2.2 | 2.7 | 1.1 | 2 | 80 | 80 |
WFA-120 | ~120 | ~45 | 15 | 2.2 | 3 | 1.1 | 2.2 | 100 | 100 |
WFA-150 | ~150 | ~55 | 18.5 | 3 | 3 | 1.2 | 2.2 | 100 | 100 |
WFA-200 | ~200 | ~75 | 22 | 3 | 3 | 1.4 | 2.2 | 125 | 125 |
WFA-300 | ~300 | ~100 | 30 | 3 | 3.2 | 1.4 | 2.2 | 150 | 150 |
WFA-400 | ~400 | ~140 | 37 | 4 | 3.3 | 1.6 | 2.3 | 200 | 200 |
WFA-500 | ~500 | ~170 | 45 | 5.5 | 3.4 | 1.6 | 2.3 | 200 | 200 |
WFA-650 | ~650 | ~240 | 55 | 5.5 | 3.6 | 1.8 | 2.5 | 200 | 200 |
