型號 modle |
處理量 Capacity |
溶氣量 Dissolved gas |
功率表 KW Power |
規格尺寸 Dimension |
管口表 DN (Nozzle list) | |||||||
m³/h | m³/h |
回流泵 Reflux pump |
加氣機 Aerating machine |
撇渣機 Skimming machine |
行走電機 Walking motor |

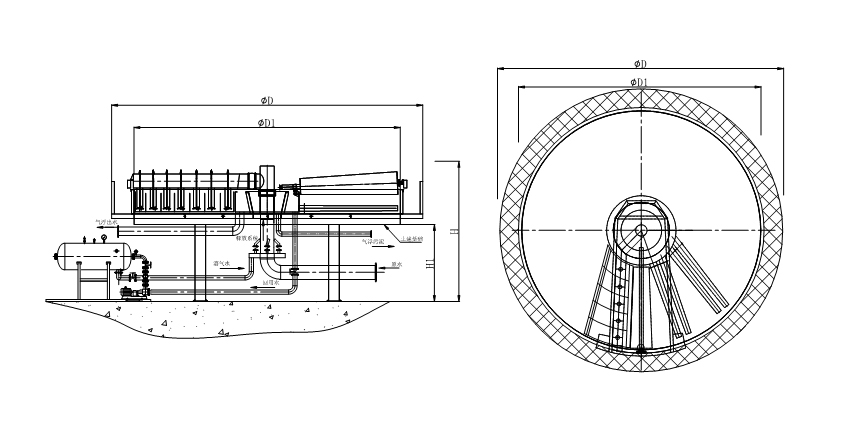

池徑 Pool diameter | D/D1 | H/H1 |
進水口iniet (A) |
出水口Outlet (B) |
排渣口 Sludge outlet (C) | |
WQF-40 | ~40 | ~13 | 5.5 | 1.5 | 0.75 | 1.5 | Φ3.5 | 5.3/3.5 | 4.2/2.5 | 150 | 150 | 100 |
WQF-50 | ~50 | ~15 | 7.5 | 1.5 | 0.75 | 1.5 | Φ4 | 5.9/4.0 | 4.2/2.5 | 200 | 200 | 100 |
WQF-80 | ~80 | ~30 | 11 | 2.2 | 1.1 | 2.2 | Φ5 | 6.9/5.0 | 4.2/2.5 | 300 | 300 | 125 |
WQF-100 | ~100 | ~40 | 11 | 2.2 | 1.1 | 2.2 | Φ6 | 7.9/6.0 | 4.2/2.5 | 300 | 300 | 125 |
WQF-150 | ~150 | ~60 | 15 | 3 | 1.1 | 2.2 | Φ7 | 8.9/7.0 | 4.2/2.5 | 350 | 350 | 150 |
WQF-200 | ~200 | ~70 | 22 | 4 | 1.5 | 3 | Φ8 | 9.9/8.0 | 4.7/3.0 | 400 | 400 | 150 |
WQF-250 | ~250 | ~90 | 30 | 4 | 1.5 | 3 | Φ9 | 10.9/9.0 | 4.7/3.0 | 400 | 400 | 150 |
WQF-300 | ~300 | ~110 | 30 | 4 | 1.5 | 3 | Φ10 | 11.9/10.0 | 4.7/3.0 | 450 | 450 | 150 |
WQF-400 | ~400 | ~150 | 45 | 5.5 | 2.2 | 3 | Φ11 | 12.9/11.0 | 4.7/3.0 | 450 | 450 | 200 |
WQF-500 | ~500 | ~200 | 45 | 5.5 | 2.2 | 4 | Φ12 | 13.9/12.0 | 5.7/4.0 | 450 | 450 | 200 |
WQF-600 | ~600 | ~240 | 55 | 5.5 | 2.2 | 4 | Φ13 | 14.9/13.0 | 5.7/4.0 | 500 | 500 | 200 |
WQF-800 | ~800 | ~280 | 55 | 5.5 | 2.2 | 4 | Φ14 | 15.9/14.0 | 5.7/4.0 | 500 | 500 | 200 |
WQF-1000 | ~1000 | ~300 | 55 | 5.5 | 2.2 | 4 | Φ15 | 16.9/15.0 | 5.7/4.0 | 600 | 600 | 200 |
WQF-1700 | ~1700 | ~480 | 75 | 7.5 | 3 | 4 | Φ18 | 19.9/18.0 | 5.7/4.0 | 700 | 700 | 250 |
