型號 modle |
處理量 Capacity |
功率表Power KW |

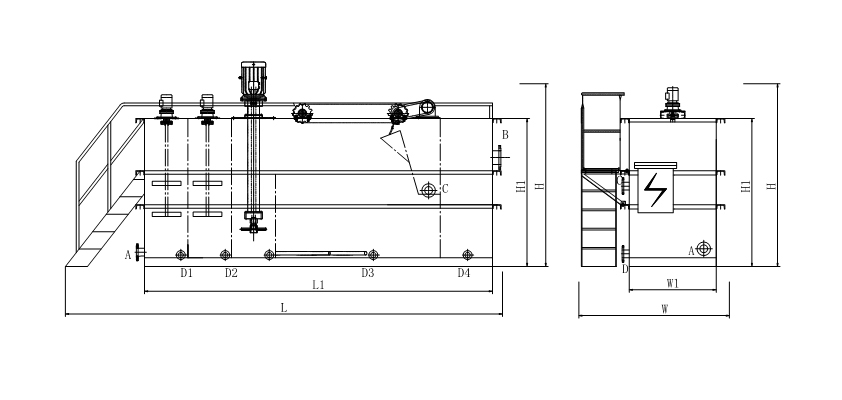

規格尺寸 Dimension |
管口表DN (Nozzle list) | |||||||
m³/h |
曝氣機 Aerator |
刮渣機 Slag scraper |
攪拌機 Blender | L/L1 | W/W1 | H/H1 |
進水口 iniet (A) |
出水口 Outlet (B) |
排渣口 Sludge outlet (C) |
放空口 Vent (D) | |
WA-5 | ~5 | 1.5 | 0.55 | 0.75 | 4.7/4.0 | 1.7/1.0 | 2.0/1.4 | 80 | 80 | 80 | 50 |
WA-10 | ~10 | 2.2 | 0.55 | 0.75 | 5.7/5.0 | 1.9/1.2 | 2.0/1.4 | 100 | 100 | 100 | 80 |
WA-15 | ~15 | 2.2 | 0.55 | 0.75 | 5.7/5.0 | 2.0/1.3 | 2.0/1.4 | 125 | 125 | 125 | 80 |
WA-20 | ~20 | 2.2 | 0.55 | 0.75 | 5.9/5.2 | 2.0/1.3 | 2.0/1.4 | 150 | 150 | 150 | 80 |
WA-30 | ~30 | 2.2 | 0.55 | 0.75 | 6.7/6.0 | 2.4/1.6 | 2.3/1.7 | 150 | 150 | 150 | 80 |
WA-40 | ~40 | 2.2/4.4 | 0.55 | 1.1 | 7.8/7.0 | 2.4/1.6 | 2.4/1.8 | 200 | 200 | 150 | 80 |
WA-50 | ~50 | 4.4 | 0.55 | 1.1 | 8.8/7.5 | 2.6/1.8 | 2.4/1.8 | 200 | 200 | 150 | 80 |
WA-70 | ~70 | 4.4 | 0.55 | 1.1 | 9.9/9.0 | 3.2/2.4 | 2.4/1.8 | 200 | 200 | 150 | 80 |
WA-100 | ~100 | 4.4 | 0.75 | 1.1 | 10.3/9.5 | 3.2/2.4 | 2.6/1.8 | 200 | 200 | 200 | 80 |
WA-120 | ~120 | 6.6 | 0.75 | 1.5 | 10.8/10.0 | 3.2/2.4 | 2.6/1.8 | 200 | 200 | 200 | 80 |
WA-150 | ~150 | 6.6 | 0.75 | 1.5 | 12.0/11.0 | 3.2/2.4 | 2.6/1.8 | 250 | 250 | 200 | 100 |
WA-200 | ~200 | 8.8 | 0.75 | 2.2 | 14.5/13.5 | 3.4/2.6 | 2.6/1.8 | 250 | 250 | 250 | 100 |
