型號 modle |
功率(KW) power |

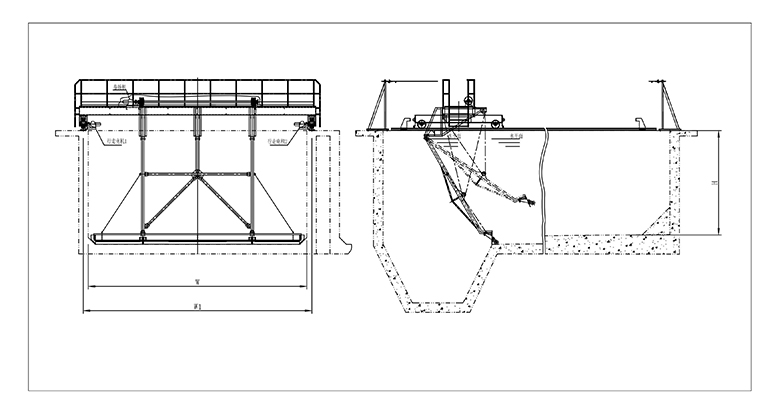

規(guī)格尺寸（m） Dimension | |||
|
行走電機(jī)×2 Walking motor |
卷揚(yáng)機(jī) Windlass |
池寬W Pool width |
行車中心距W1 Distance between driving centers |
池深H Pool depth | |
| WTG-3 | 0.55×2 | 0.75 | 3 | 3.3 | 3.0～5.0 |
| WTG-4 | 0.75×2 | 0.75 | 4 | 4.3 | 3.0～5.0 |
| WTG-5 | 1.1×2 | 1.1 | 5 | 5.3 | 3.0～5.0 |
| WTG-6 | 1.5×2 | 1.1 | 6 | 6.3 | 3.0～5.0 |
| WTG-10 | 1.5×2 | 1.5 | 10 | 10.3 | 3.0～5.0 |
| WTG-16 | 1.5×2 | 1.5×2 | 16 | 16.3 | 3.0～5.0 |
| WTG-20 | 2.2×2 | 1.5×2 | 20 | 20.3 | 3.0～5.0 |
